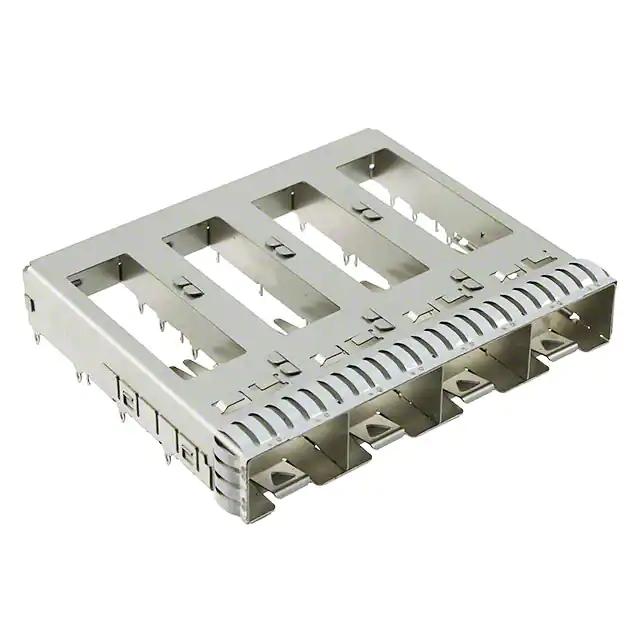

2169260-1 SFP+ Cage Ganged 1 X 4 Connector NO Lightpipe Through Hole
Original price was: $16.0000.$12.6000Current price is: $12.6000. & Free Shipping
120 in stock
Free shipping on orders over $500!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Highlight:
2169260-1
,
2169260-1 SFP+ Cage
,
1 x 4 Port SFP+ Cage
|
Original:
|
2169260-1
|
Connector Type:
|
SFP+ Cage
|
|
Part Status:
|
Active
|
Data Rate (Max) (Gb/s):
|
16 Gb/s
|
|
File:
|
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
|
Lifecycle:
|
More Than 20Years
|
2169260-1 SFP+ Cage Ganged 1 X 4 Connector NO Lightpipe Through Hole
2169260-1 SFP+ Cage Ganged (1 x 4) Connector NO Lightpipe Through Hole
SFP+,Cage, Data Rate (Max) 16 Gb/s, External Springs, SFP+ Enhanced, 1 x 4, Through Hole – Press-Fit Mount, 4 Port, Cable-to-Board
| Part Number | 2169260-1 |
|---|---|
| Part Status | Active |
| Connector Type | SFP+ |
| Connector Style | Cage Ganged (1 x 4 ) |
| Number of Ports | 1X4 port |
| Included Lightpipe | NO |
| PCB Mounting Style | Through Hole – Press-Fit |
| Data Rate (Max) | 16 Gb/s |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 2.25 mm [ .089 in ] |
| Tail Length | 2.05 mm [ .081 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | EMI Springs |
| Circuit Application | Signal |
| Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly | ||||

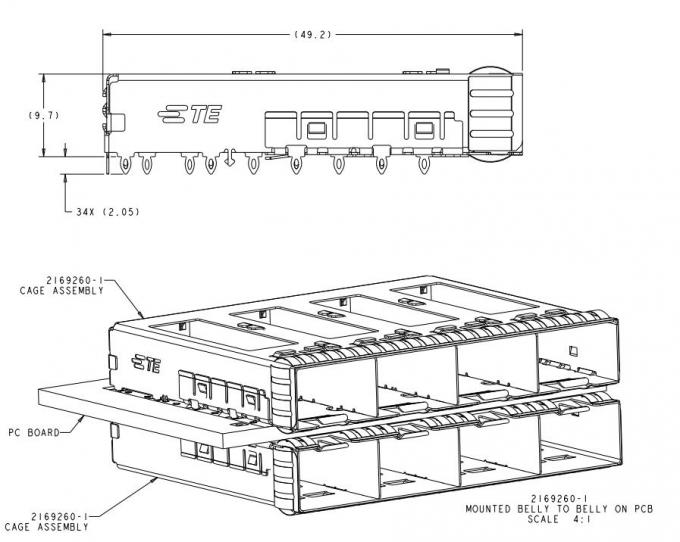

2169260-1 Drawing:
2169260-1 Description:
.2169260-1 SFP+ Cage Connector 1 x4 Port
.2169260-1 1×4 Port SFP+ Cage
.2169260-1 SFP+ Cage Assembly 1×4 Port
.2169260-1 1×4 Port SFP+ Cage
.2169260-1 SFP+ Cage Assembly 1×4 Port
.2169260-1 SFP+ Cage Ganged (1 x4) Connector Through Hole
2169260-1 SFP+ Cage Similar Part Number :
| 2284170-1 | 2007251-1 | 2007181-1 |
| 2007132-1 | 2007180-1 | 2110069-1 |
| 2170744-4 | 2170805-1 | 2169260-1 |
| 2057555-1 | 2300275-1 | 2338495-3 |
| 2170746-2 | 2170805-5 | 2007250-1 |
What is SFP+ Cage ?
SFP+ cage is designed with metal fingers in each cage port to protect against Electromagnetic Interference (EMI)
and improve contact interface to the mating surface when inserted into the chassis opening. The EMI metal cages
are available in 1×1, 1×2, 1×3, 1×4 and 1×6 configurations.
